PYROLYSIS & DISTILLATION EQUIPMENT

Turn plastic, tyre and oil sludge into fuel oil you can sell

ECO Pyrolysis builds batch, semi-continuous and continuous pyrolysis plants, together with waste-oil distillation units. Every system is configured around your feedstock, your site and the output you need to sell.

Feedstock test reports, layout drawings and commercial proposals are provided on request.
FEEDSTOCK

Waste plastic, waste tyre, oil sludge, waste oil

CAPACITY

1–30 TPD per line, configuration dependent

OPERATING MODE

Batch, semi-continuous, continuous

OUTPUTS

Fuel oil, carbon black, combustible gas

EQUIPMENT LINES

Four equipment lines, one engineering team

Each line shares the same engineering, fabrication and commissioning team, so the specification of your plant is drawn from the material you actually process rather than a fixed catalogue item.

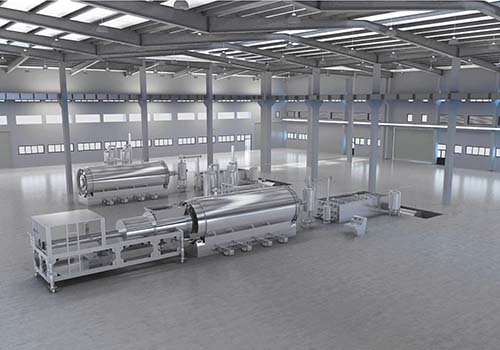

Plastic Pyrolysis Plant

PP, PE and PS waste converted to fuel oil. Batch operation, with feedstock preparation and residue discharge sized to your material mix.

Tyre Pyrolysis Plant

Whole or shredded tyre processing with steel wire and carbon black handling, designed around your shredding capacity and site layout.

Oil Sludge Pyrolysis Plant

Oily sludge and tank-bottom waste treated to recover oil while reducing disposal volume, with vapour and wastewater handling.

Waste Oil Distillation Plant

Used oil and pyrolysis oil refined into lighter fuel fractions through distillation, with fraction cut points set to your target market.

Detailed specifications for the tyre, oil sludge and waste oil lines are issued with the technical proposal. The plastic line is documented in full below.

WHY ECO PYROLYSIS

What a usable pyrolysis line actually depends on

Most operating problems come from the interface between the material and the machine. The list below is where we spend the engineering time.

Specified from your feedstock

Material composition, moisture and contamination drive the reactor, condenser and discharge design. We start from a feedstock assessment, not a stock model.

Fabrication under one roof

Reactor, frame, piping and control cabinet are built and assembled as one package, then run in before shipment instead of being assembled on site for the first time.

Inspection before shipment

Dimensional checks, weld inspection and a pressure and leak test are documented, and the assembled unit is run in before it leaves the workshop.

Commissioning and training

Our engineers attend start-up, tune the process to your material and train your operators on feeding, discharge and shutdown.

Emission control integrated

Flue gas scrubbing, vapour recovery and wastewater handling are designed as part of the line so the plant can be presented to your local authority.

Spare parts and field support

Wear parts, seals and gaskets are stocked against your model, with remote support for fault finding between service visits.

HOW A PROJECT RUNS

From material sample to operating plant

A pyrolysis project is a sequence of decisions. Each stage below closes one of them before the next begins, so nothing is ordered against an assumption.

01

Feedstock and site assessment

You send material samples, target throughput, available footprint and utility conditions.

02

Process design and proposal

Reactor size, heating method, condenser train and discharge system are selected and quoted.

03

Fabrication and inspection

The line is built, assembled and tested in the workshop with inspection records.

04

Shipment and commissioning

Packing, shipping documentation, installation supervision and start-up on your site.

05

Operation and support

Operator training, wear-part supply and process tuning as your material mix changes.
PROJECT REFERENCES

References are shared, not published without consent

We publish a project only after the client agrees to the disclosure. Until then, we send the reference list directly: feedstock, line capacity, commissioning date and the contactable site for projects that match your material.

MANUFACTURING & QUALITY CONTROL

What is checked before the plant is shipped

The reactor is the pressure boundary and the condenser train is where efficiency is won or lost. Both are inspected in the workshop, where a fault is cheap to fix, rather than on your site, where it is not.

Every line is fully assembled and run in before packing. You receive the inspection records and a pre-shipment photo and video report for the unit you are paying for.

PHOTO SLOT
Production line and QC inspection photo (minimum 1600 × 1000 px). Upload to the Media Library, then replace this block with an Image widget.
TECHNICAL ANSWERS

Questions buyers ask before signing

The answers below are the ones that most often decide the specification. If your question is not here, send it with your material details and we will answer it directly.

PP, PE, PS and most mixed polyolefin waste work well. PET and PVC are not suitable: PET introduces oxygen into the process and PVC releases hydrogen chloride, which attacks the reactor and the oil. Send a sample and we will report the expected oil yield before you commit.

Yield depends on the polymer mix and on how much moisture and inert material is present. We quote a yield range based on your sample rather than a single figure, and we state the basis of the calculation in the proposal.

Only on tyres. Plastic and oil sludge lines are batch only — neither material feeds reliably into a metered continuous line. On tyres, batch suits small volumes, mixed or intermittent feedstock and a low initial budget, while semi-continuous or continuous suits a steady feed of pre-processed tyre or rubber powder, higher tonnage and a stable product specification. The comparison depends on your annual tonnage more than on the price of the plant.

The line is delivered with operating procedures, safety interlocks and documentation for emission control. Permitting is a local matter, so we prepare the technical documents your authority asks for rather than promising an approval.

Carbon black is discharged and can be sold, briquetted or used as fuel. The non-condensable gas is normally returned to the burner to reduce external fuel consumption.

Feedstock type and sample, target tonnes per day, site footprint and power supply, and the product you want to sell. With those four items we can size the line and quote.

Technical library

Process explanations, feedstock guides and comparison articles are published in the technical library.

Company profile

Who we are, where we build and how we work with overseas buyers.
NEXT STEP

Send the material. Get a sized proposal.

Tell us the feedstock, the tonnage you need to process and where the plant will be installed. You get a configuration, a capacity basis and a delivered price — not a catalogue page.
